Description

MARIN QUALITY

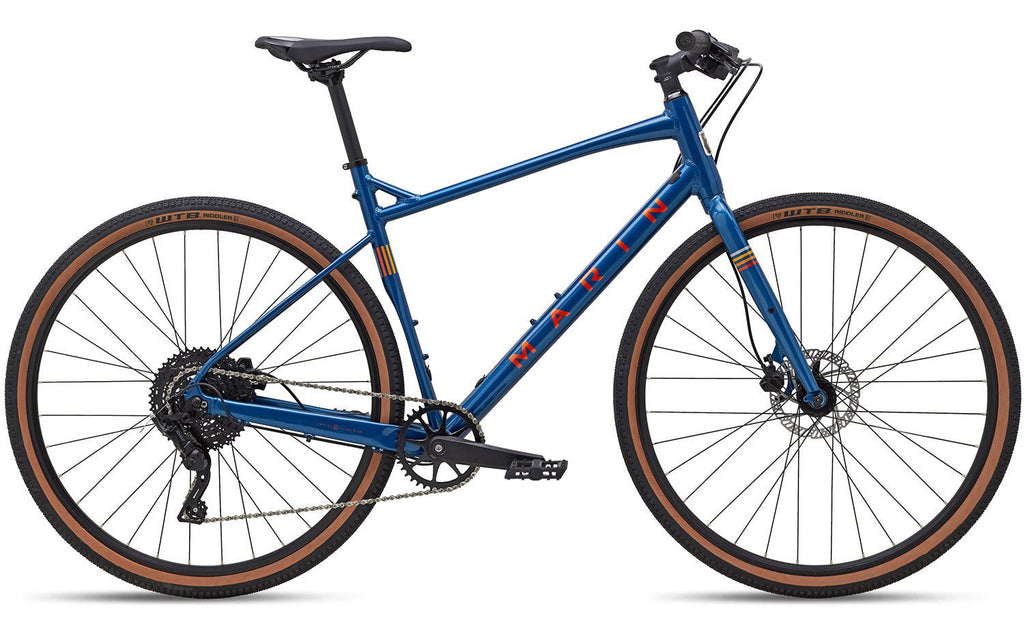

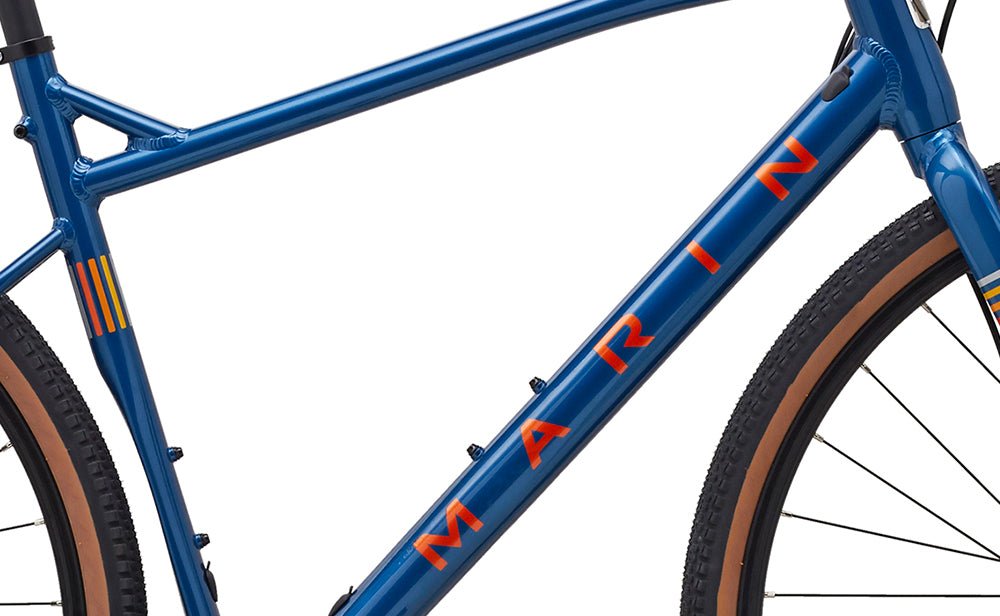

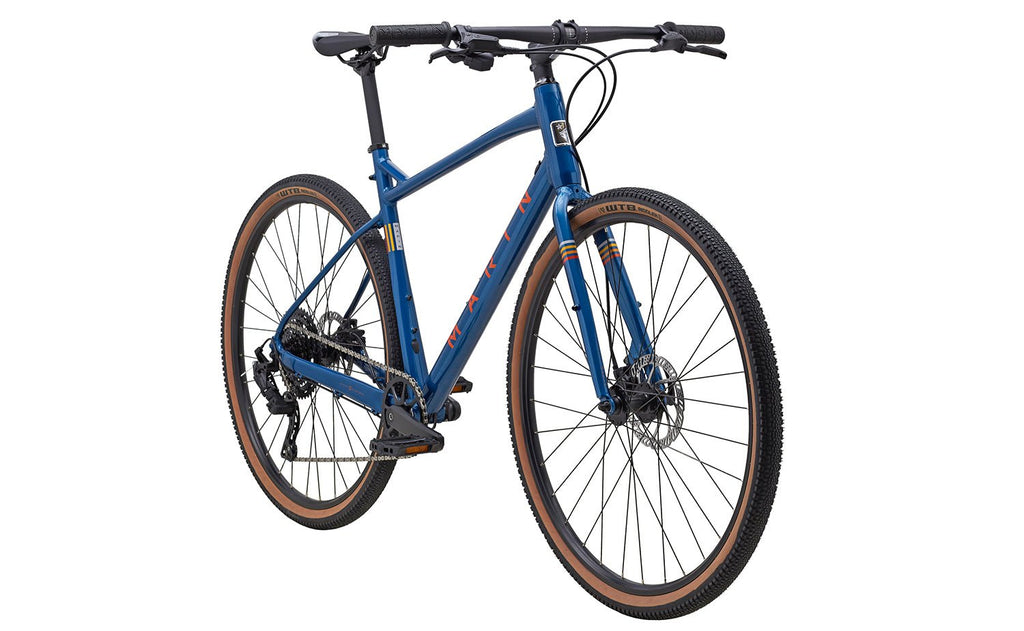

DSX features a Series 2 6061 aluminium frame especially tuned for commuting and exploration with thru-axles, a tapered headtube, dropper post compatibility, space for up to 2.1” tyres, guard/rack mounts and a lifetime warranty.

COMFORT GEO

DSX is Marin’s most capable flat bar gravel bike to date, with a super comfy/upright position that feels super planted and comfortable to ride. Featuring a 69.5° head angle for stability, 74° seat tube angle for comfort and 425mm chainstays for handling.

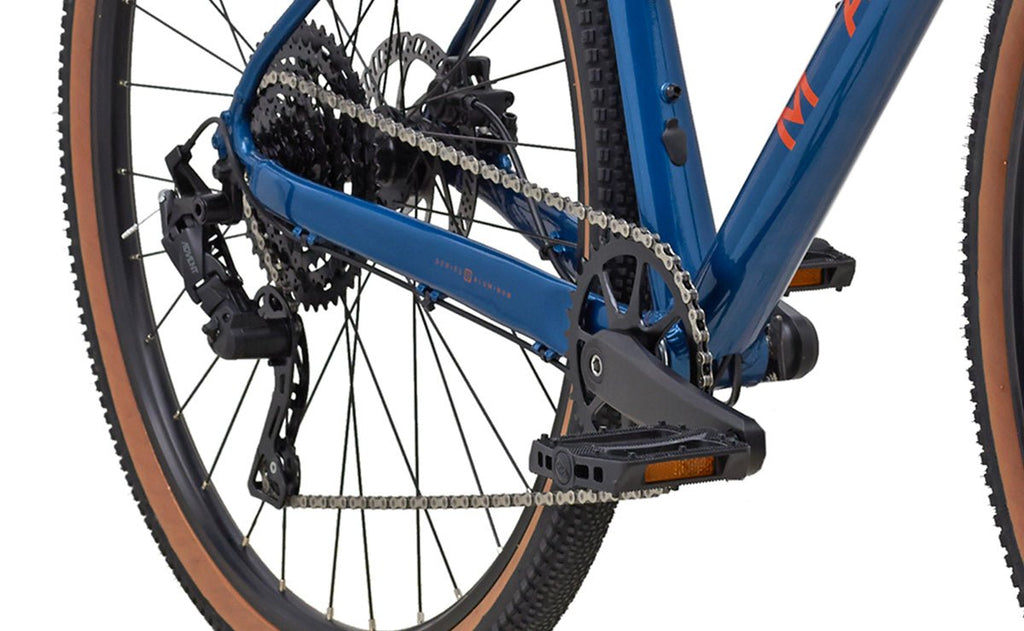

ADVENT 1X9

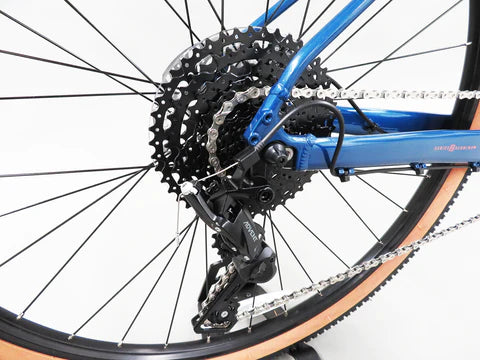

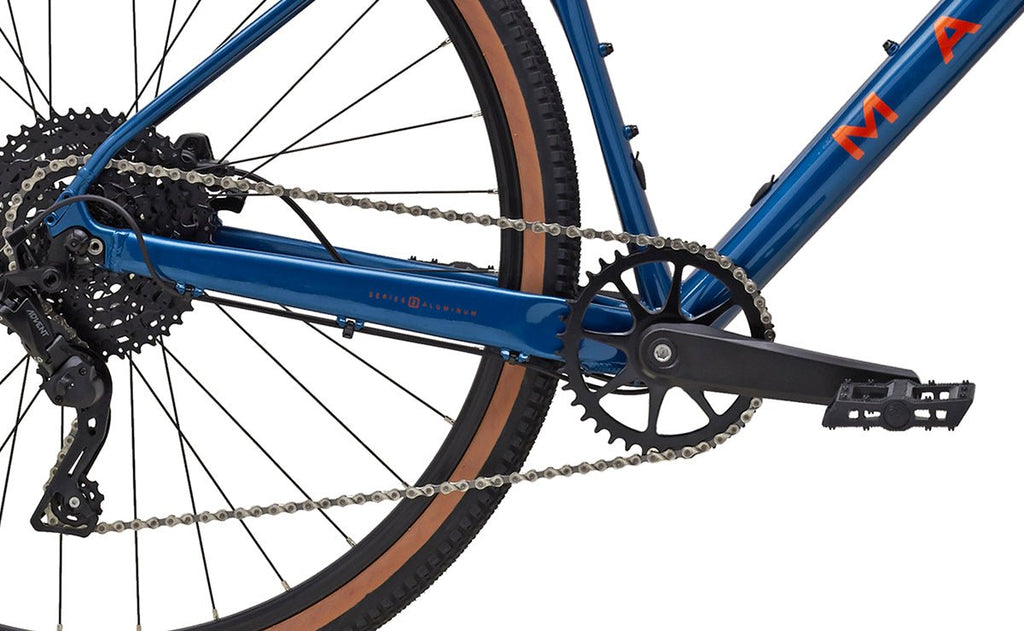

The Microshift Advent drivetrain is paired with a 38T chainring and an 11-46T cassette, giving you a massive gear ratio to get up, down and all around with ease

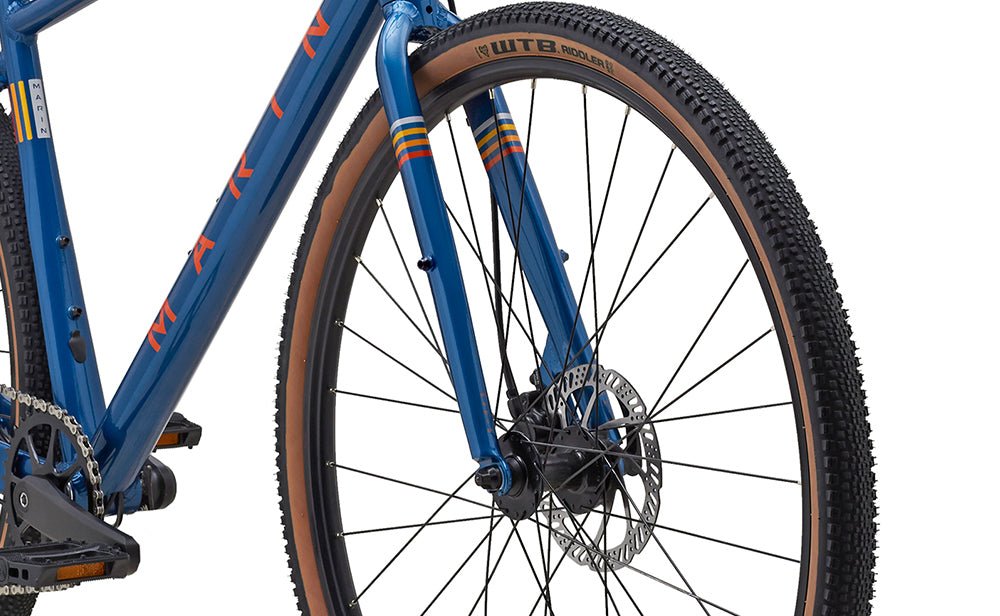

DISC BRAKES

Clarks hydraulic disc brakes provide reliable, quiet braking performance in even the grimiest conditions. They come paired with 160mm rotors for grip.

WTB TYRES

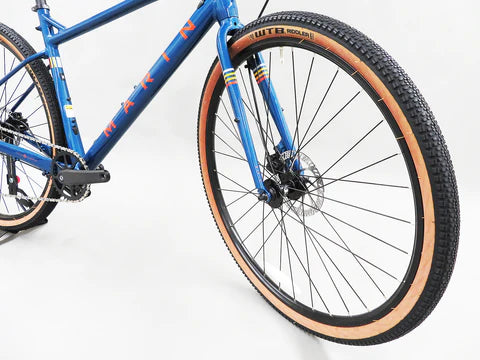

The Riddler from WTB is one of the quickest and comfiest gravel tyres on the market, with awesome features like semi-slick treads and efficient knob spacing.

Components

FRAMESET
FRAME
Series 2 DSX, 6061 Aluminium, Internal Cable Routing, Mudguard and Rack Mounts, IS Disc Mount
HEADSET
FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
SUSPENSION

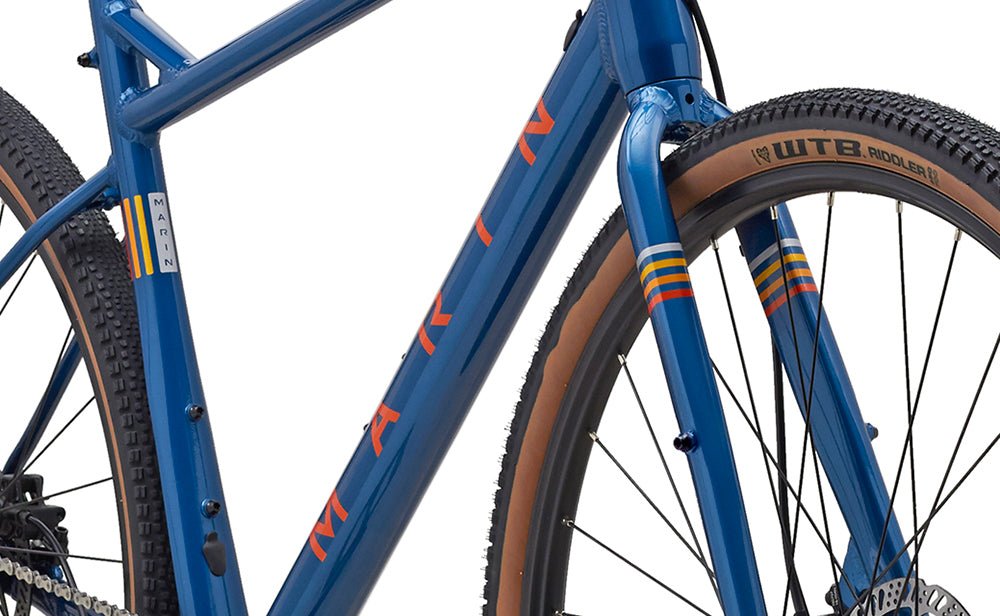

FORK
6061 Aluminium, Straight-Blade, Disc Mount, Fender and Rack Eyelets
DRIVETRAIN
REAR DERAILLEUR
MicroSHIFT Advent 9, Clutch
SHIFTER
MicroSHIFT Advent 9 Trail
CRANK
Alloy Crank, Steel Narrow-Wide Chainring, 38T
CASSETTE
Alloy Crank, Steel Narrow-Wide Chainring, 38T
CHAIN
KMC X9
BRAKES
FRONT BRAKE
Tektro HD-R275 Hydraulic Disc, 160mm Rotor
REAR BRAKE
Tektro HD-R275 Hydraulic Disc, 160mm Rotor
WHEELS
REAR HUB
Forged Aluminium Alloy, Disc, 32H2H*
RIM
Marin Aluminium Double Wall, Disc Specific
TYRE
WTB Riddler, 700Cx45mm
CONTACT POINTS

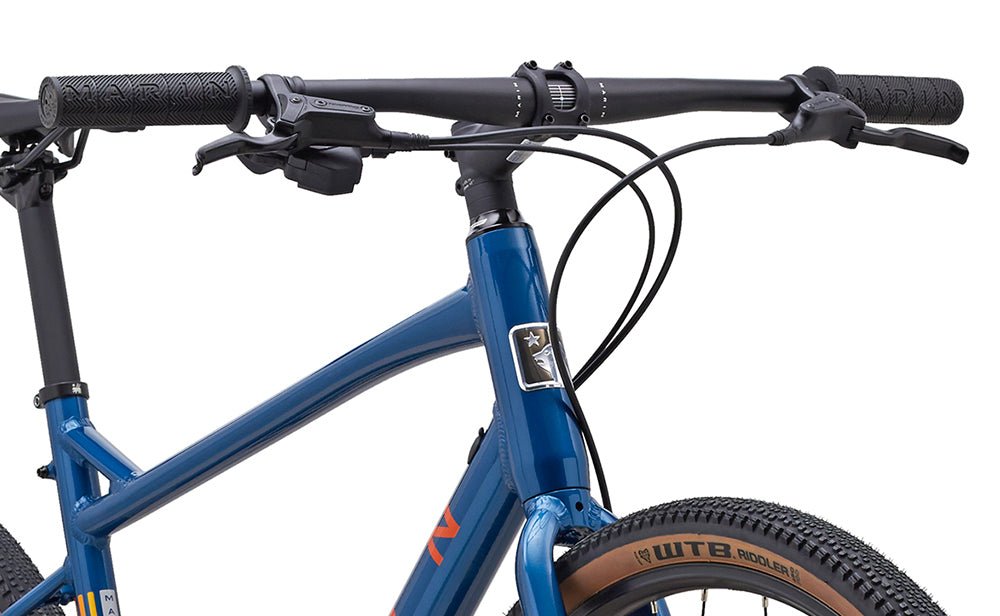

HANDLEBAR
Marin MiniRiser

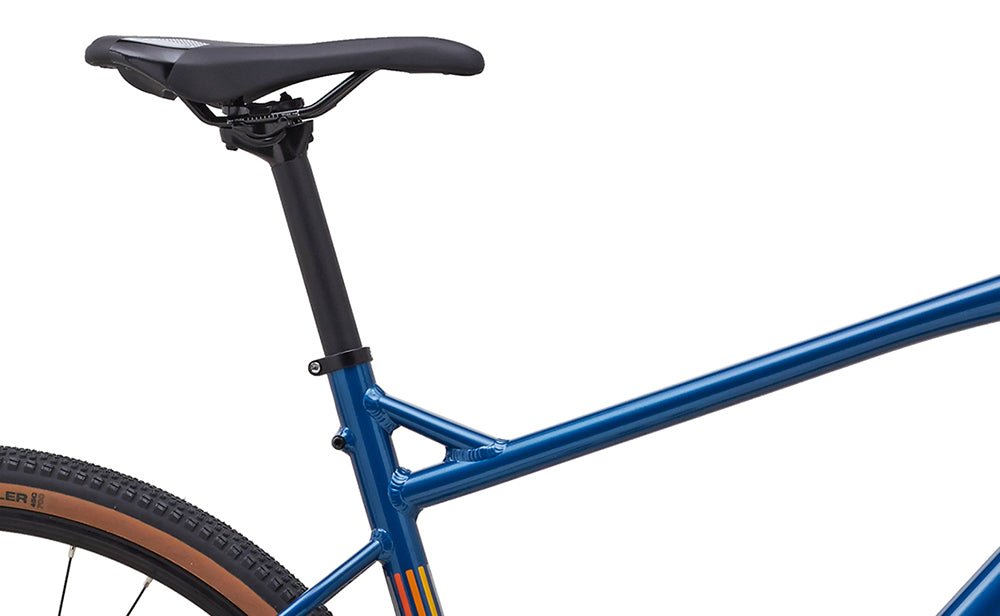

SADDLE
Marin DSX
SEATPOST
Marin Alloy

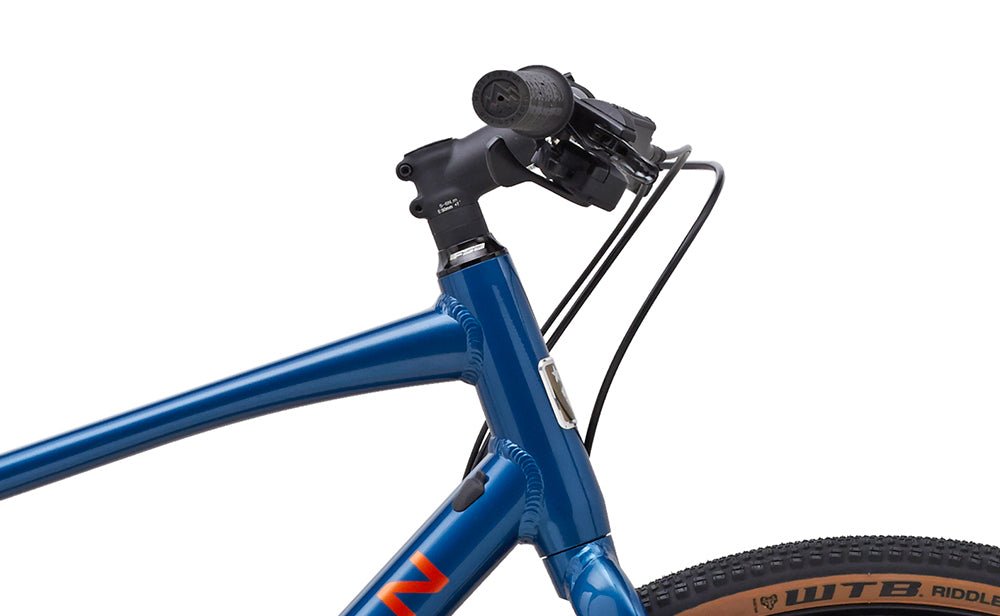

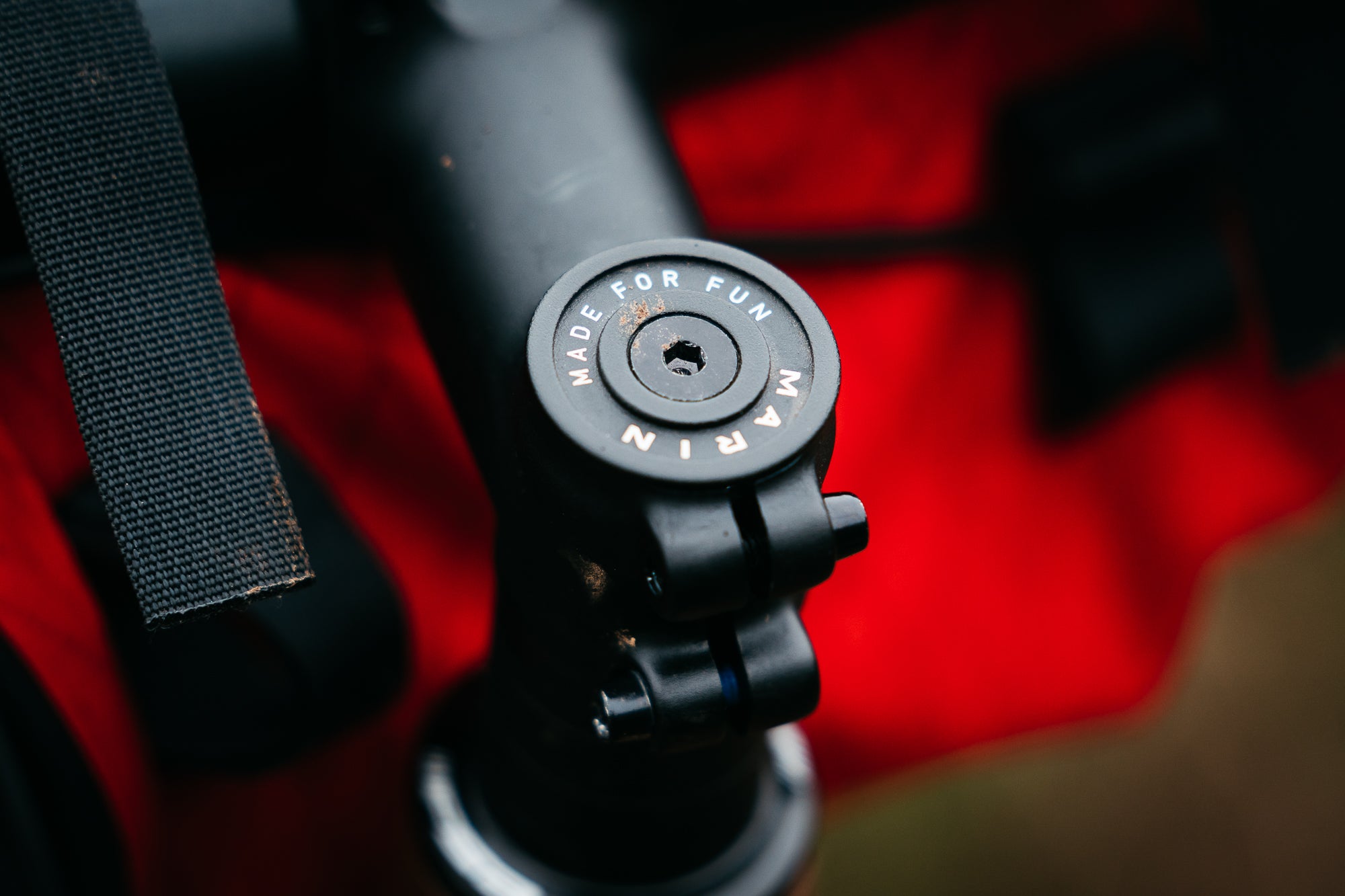

STEM
Marin MTB
PEDALS
Commute Platform
WEIGHT
BIKE WEIGHT
13.6 kg (M)

Geometry

  S M L XL
Rider's Height 160-168cm 168-178cm 178-188cm 186-193cm
(A) Stack 544.4 572.5 600.6 628.7
(B) Reach 380 405 420 435
(C) Head Tube Angle 69.5 69.5 69.5 69.5
(D) Head Tube Length 120 150 180 210
(E) Seat Tube Angle 74 74 74 74
(F) Seat Tube Length 430 480 520 558
(G) Top Tube Effective 536.1 569.2 592.2 615.3
(H) Bottom Bracket Height 279.5 279.5 279.5 279.5
(I) Bottom Bracket Offset 80 80 80 80
(J) Chainstay 425 425 425 425
(K) Wheel Base 1024.42 1060 1085.4 1110.9
(L) Standover Height 658.76 700.51 730.39 758.5
Handle Bar Width 640 680 680 680
Stem Length 70 70 70 70
Crank Length 170 170 175 175

* All lengths in mm

Assembly

Get ready to hit the road with your new bike! It’ll arrive almost ready to go, but you’ll need to do a quick setup first. Don’t worry, we’ve popped all the tools you’ll need right in the box.

If you’re a bike-building pro: You’ll be done in just 10-15 minutes.
Got a knack for fixing things? Give it 15-25 minutes.
New to the DIY world? Take your time, around 30-40 minutes, and you’ll get there!

Need some visual aids? We’ve got you covered! Just click on our step-by-step video guide below for a smooth setup. Happy cycling!

Step 1

Unboxing

Step 2

Seat Height

Step 3

Inflate Tyres

Step 4

Handlebar- Quill Stem

Step 5

Vintage Mudguard

Step 6

Front Wheel- Nut Axle

Step 7

Adjust Caliper Brakes

Step 8

Install Pedals

Step 9

Front Basket

Step 10

Vintage Rear Rack

Step 11

Adjust a Rear Derailleur

Step 12

Pre ride Check
