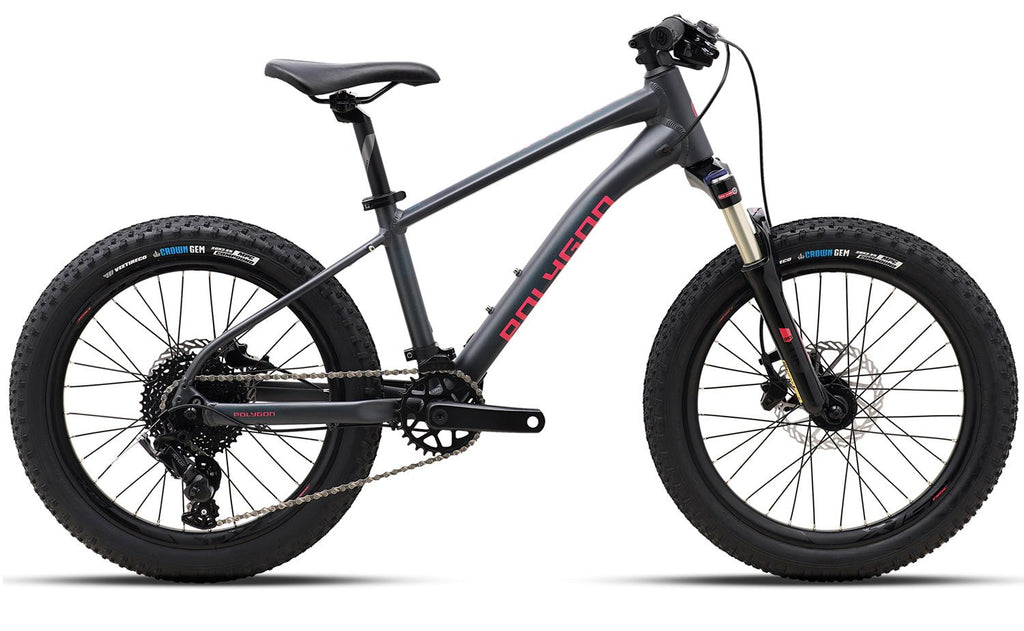

Polygon Xtrada 20 - Kids Mountain Bike
Polygon Xtrada 20 - Kids Mountain Bike
Polygon Xtrada 20 - Kids Mountain Bike
Polygon Xtrada 20 - Kids Mountain Bike
Polygon Xtrada 20 - Kids Mountain Bike
Polygon Xtrada 20 - Kids Mountain Bike
media.alt
media.alt
media.alt
media.alt
media.alt
media.alt

Description

LIGHTWEIGHT

Is there anything more wholesome than a kid having fun in the dirt? This is why we designed the new Xtrada 20” with the perfect mix of speed, confidence and durability—featuring ALX Jr. lightweight aluminium, Super low weight and aggressive tube angles.

GEOMETRY

The Xtradas' sporty angles, tapered headtube, and short chainstays make for safe riding and steady handling. Ideal for fire trails and single tracks, it features a 66° head tube and 75° seat tube angles, and 340mm chain stays for confident handling and happy young shredders.

MODERN DESIGN

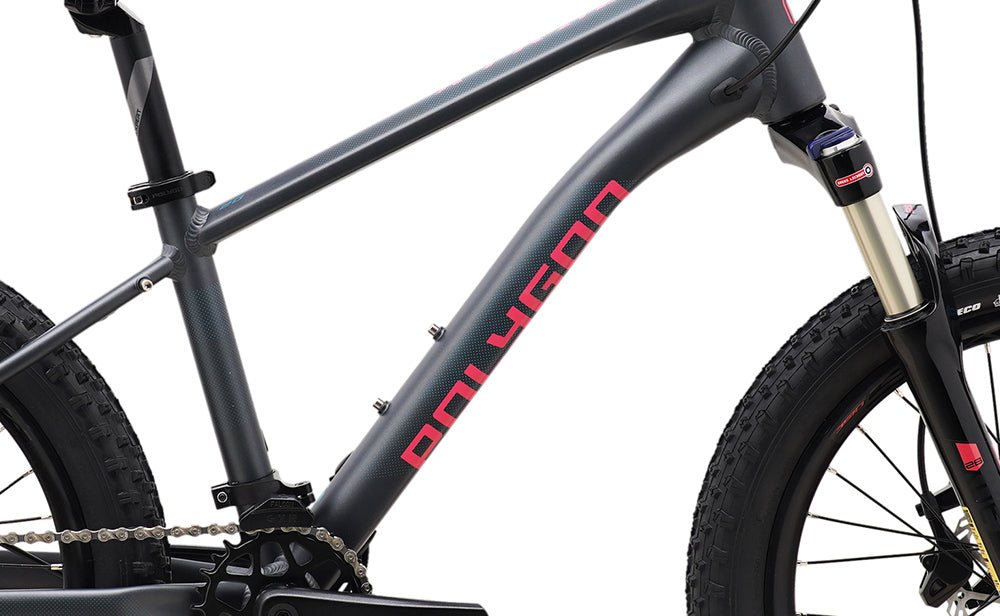

Light, durable, and hydroformed, the 6061 aluminium frame features a threaded bottom bracket, internal cable routing, and the latest mod cons.

SUNTOUR XCM Jr.

The Xtrada comes equipped with 80mm air-sprung forks, which offer a smooth/controlled ride for newer riders and feature a lockout adjuster.

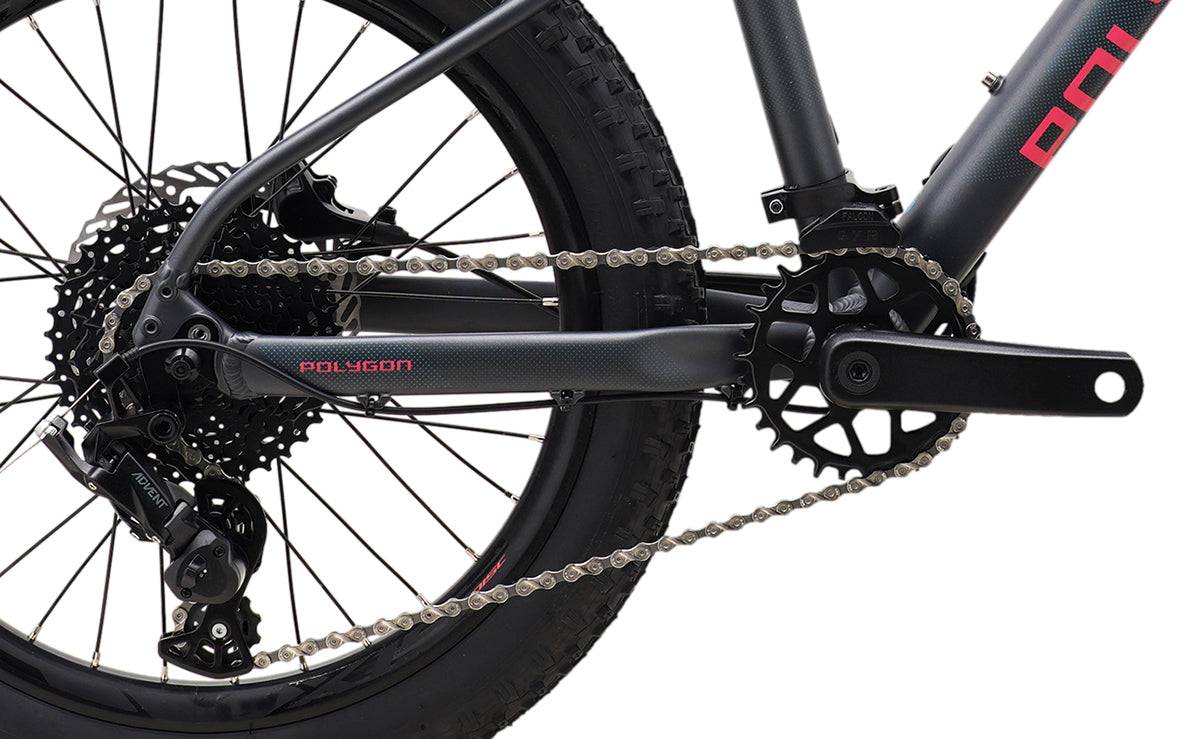

MICROSHIFT 9-SPEED

9-Speed Advent from Microshift offers a massive gear range, with a 30t chainring up front and an 11-38t on the rear. The rear derailleur also features a short cage to help keep it safe.

HYDRO DISCS

Tektro Jr. hydraulic brakes provide loads of power, modulation, and control. The Xtrada’s brakes feature levers designed for small hands that are easy to reach.

Components

FRAMESET
FRAME
ALX Junior 20” Aluminium Frame, Quick Release 10x135mm, Threaded 68mm BB
SUSPENSION
FORK
Suntour XCM JR, Preload Adjuster, 80mm Travel, QRx100mm
DRIVETRAIN
REAR DERAILLEUR
MicroShift ADVENT RD-M6195, 9-Speed
SHIFTER
MicroShift SL-M6195R, 9-Speed Shifter
CRANK
ProWheel C10Y, 32T, 127mm
CASSETTE
MicroShift CS-H093, 11-38T
CHAIN
KMC X9, 9-Speed
BRAKES
FRONT BRAKE
Tektro HD-J285, Hydraulic Disc, 160mm Rotor
REAR BRAKE
Tektro HD-J285, Hydraulic Disc, 160mm Rotor
WHEELS

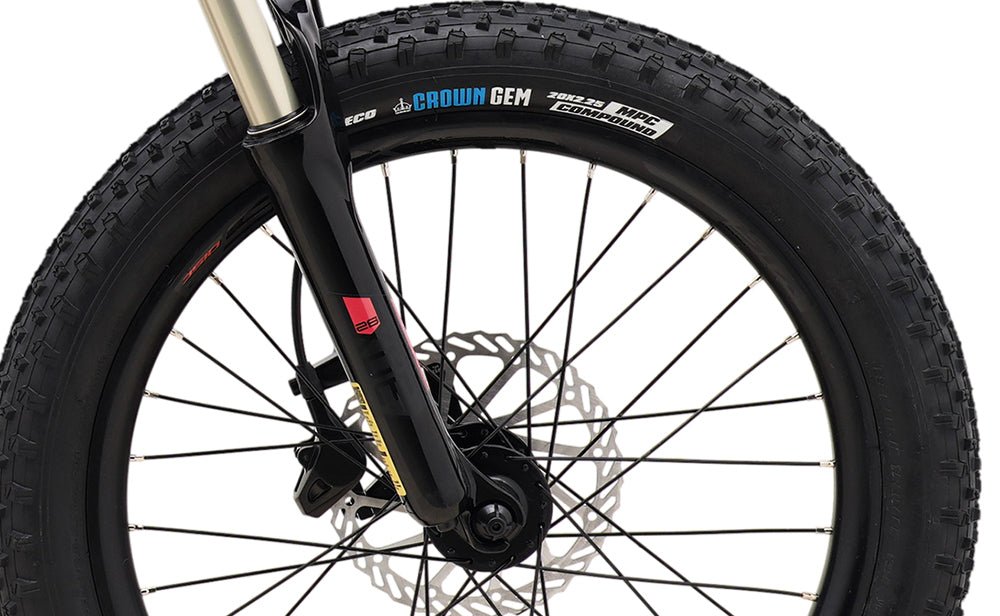

TYRE
VeetireCo. Crown Gem, 20x2.25”
CONTACT POINTS

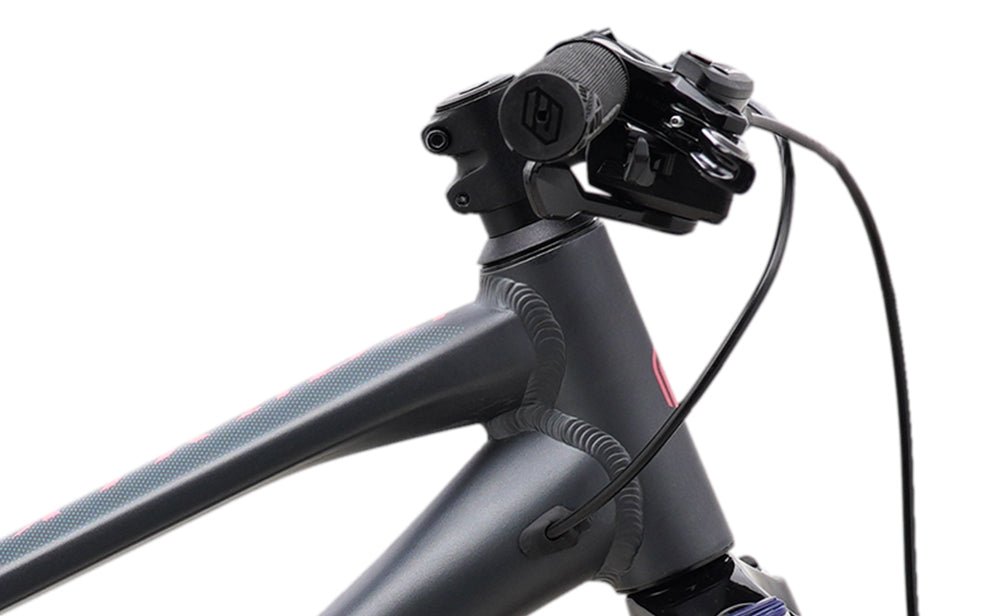

HANDLEBAR
Polygon Steel, 31.8mm Clamp, 580mm wide, 20mm Rise

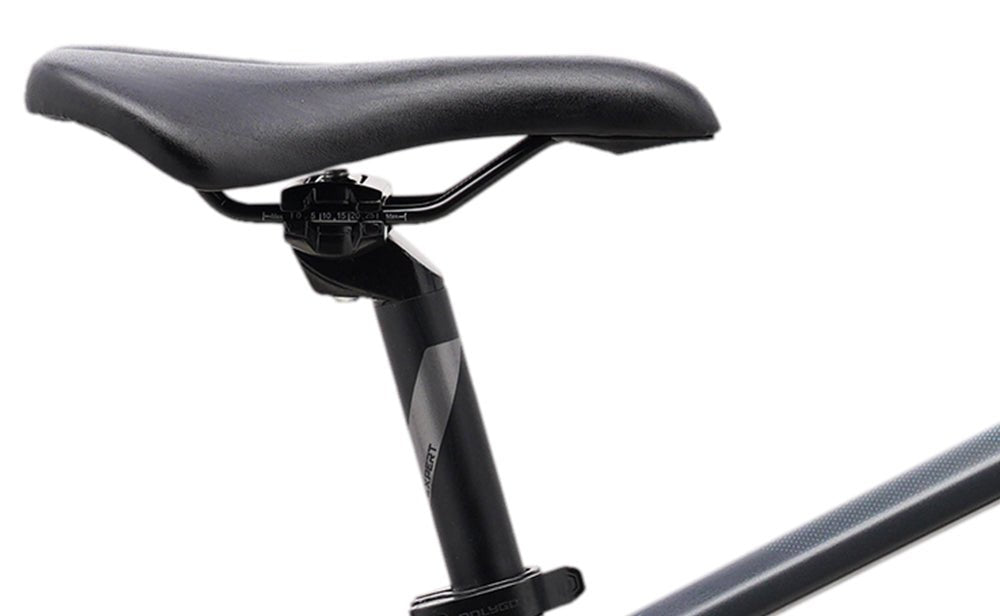

SADDLE
Entity Black Sadle
SEATPOST
Entity 27.2x250mm
STEM
Entity Alloy, 45mm length, 31.8mm clamp
PEDALS
Included
WEIGHT
BIKE WEIGHT
12.9kg

Geometry

Rider's Height 115 - 130 cm
(A) Stack 500
(B) Reach 310
(C) Head Tube Angle 66°
Seat Tube Angle Effective 75°
(F) Seat Tube Length 308
(G) Top Tube Effective 445
(H) Bottom Bracket Height 259
(I) Bottom Bracket Offset 10
(J) Chainstay 340
(K) Wheel Base 912
(L) Standover Height 560

Assembly

Get ready to hit the road with your new bike! It’ll arrive almost ready to go, but you’ll need to do a quick setup first. Don’t worry, we’ve popped all the tools you’ll need right in the box.

If you’re a bike-building pro: You’ll be done in just 10-15 minutes.
Got a knack for fixing things? Give it 15-25 minutes.
New to the DIY world? Take your time, around 30-40 minutes, and you’ll get there!

Need some visual aids? We’ve got you covered! Just click on our step-by-step video guide below for a smooth setup. Happy cycling!

Step 1

Unboxing

Step 2

Seat Height

Step 3

Inflate Tyres

Step 4

Handlebar- Quill Stem

Step 5

Vintage Mudguard

Step 6

Front Wheel- Nut Axle

Step 7

Adjust Caliper Brakes

Step 8

Install Pedals

Step 9

Front Basket

Step 10

Vintage Rear Rack

Step 11

Adjust a Rear Derailleur

Step 12

Pre ride Check
